CablePath Generator

CablePath Generator is a procedural cable creation add-on for Blender.

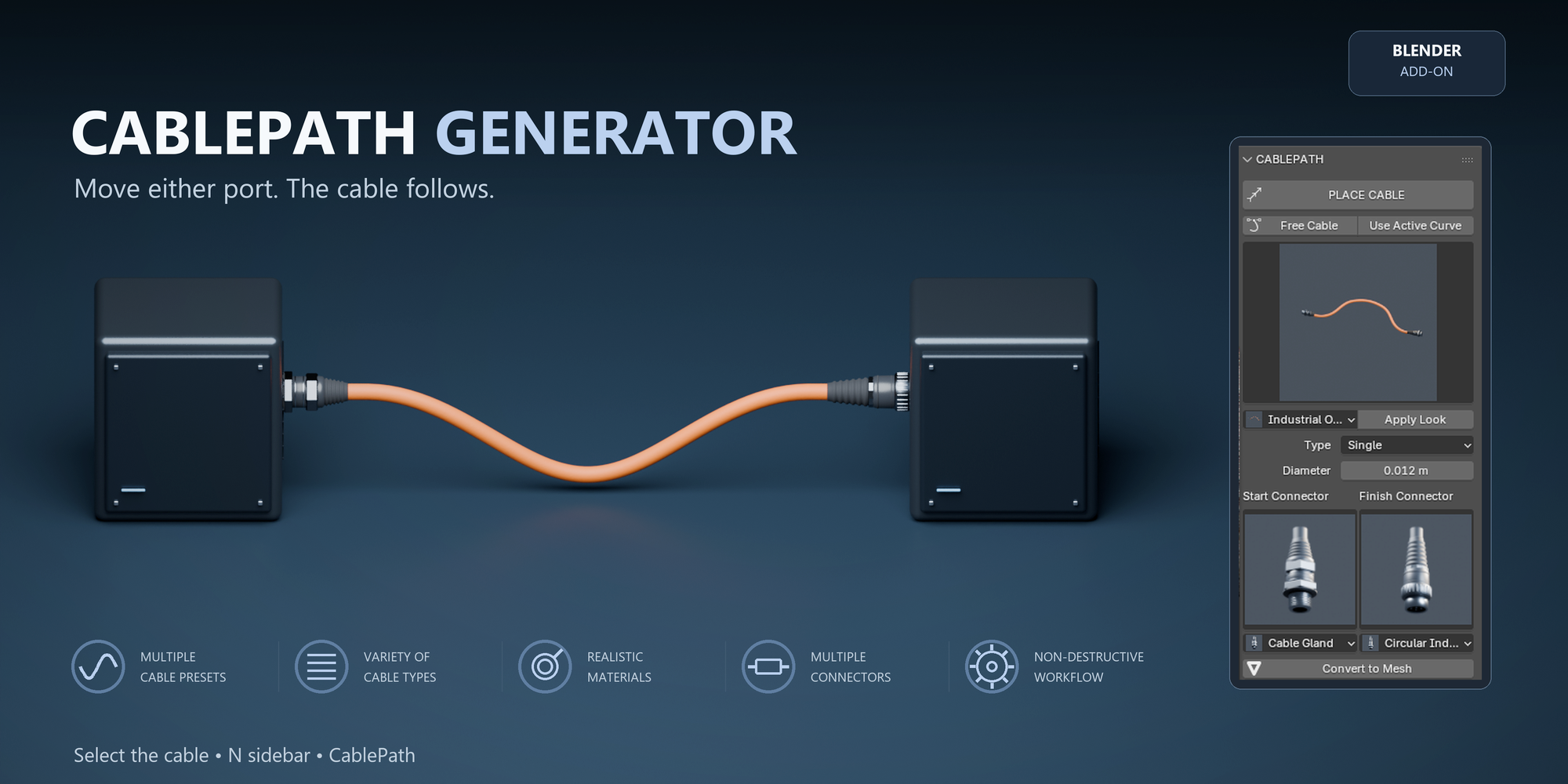

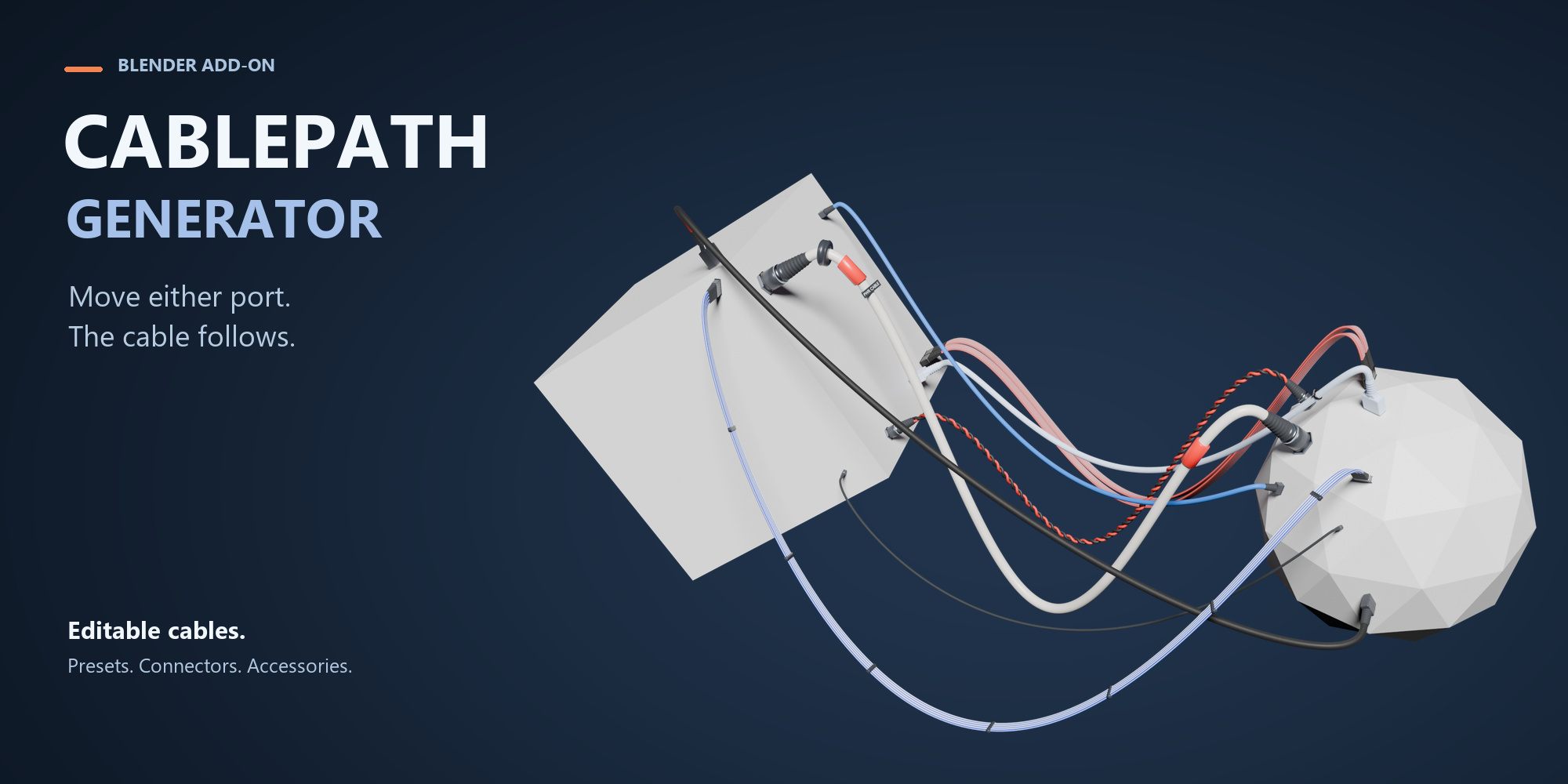

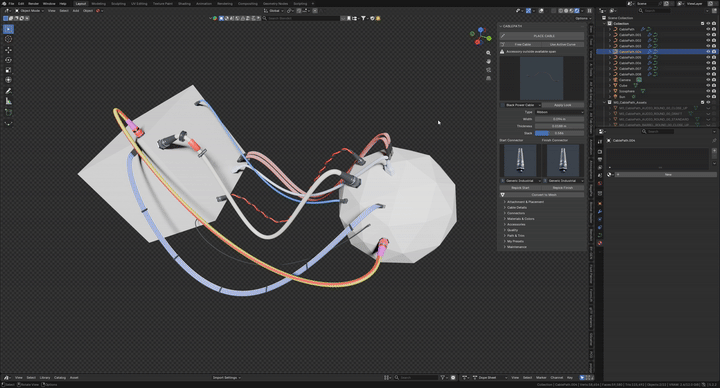

Create cables directly between objects and ports, choose cable types, connectors, materials and presets, then adjust everything procedurally. Move either port and the cable follows.

Features:

- Fast cable placement between objects

- 7 cable constructions

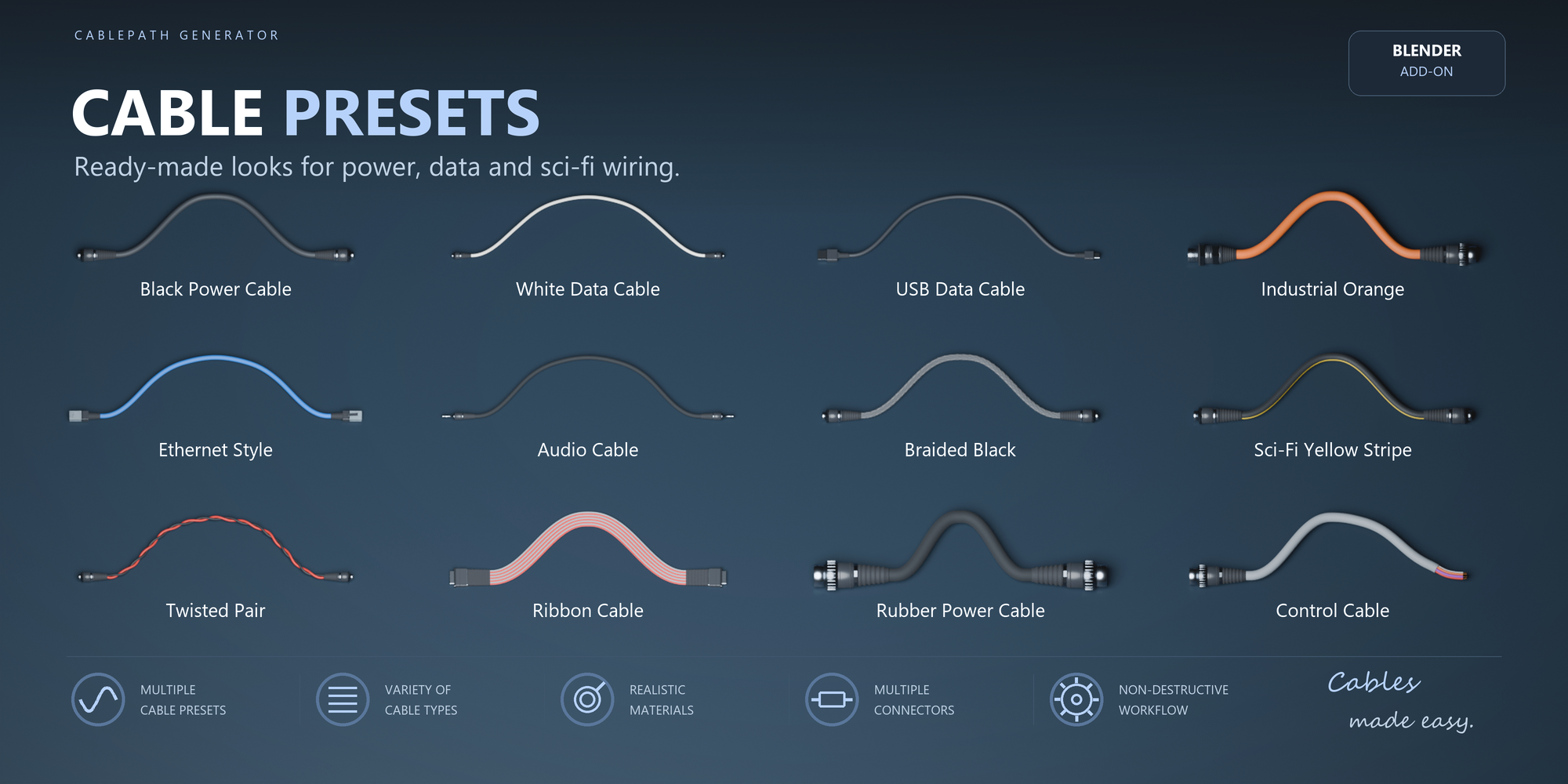

- Multiple ready-made cable presets

- Multiple connector styles

- Realistic procedural materials

- Independent start and finish connectors

- Cable labels and accessories

- Editable non-destructive workflow

- Convert to Mesh when ready

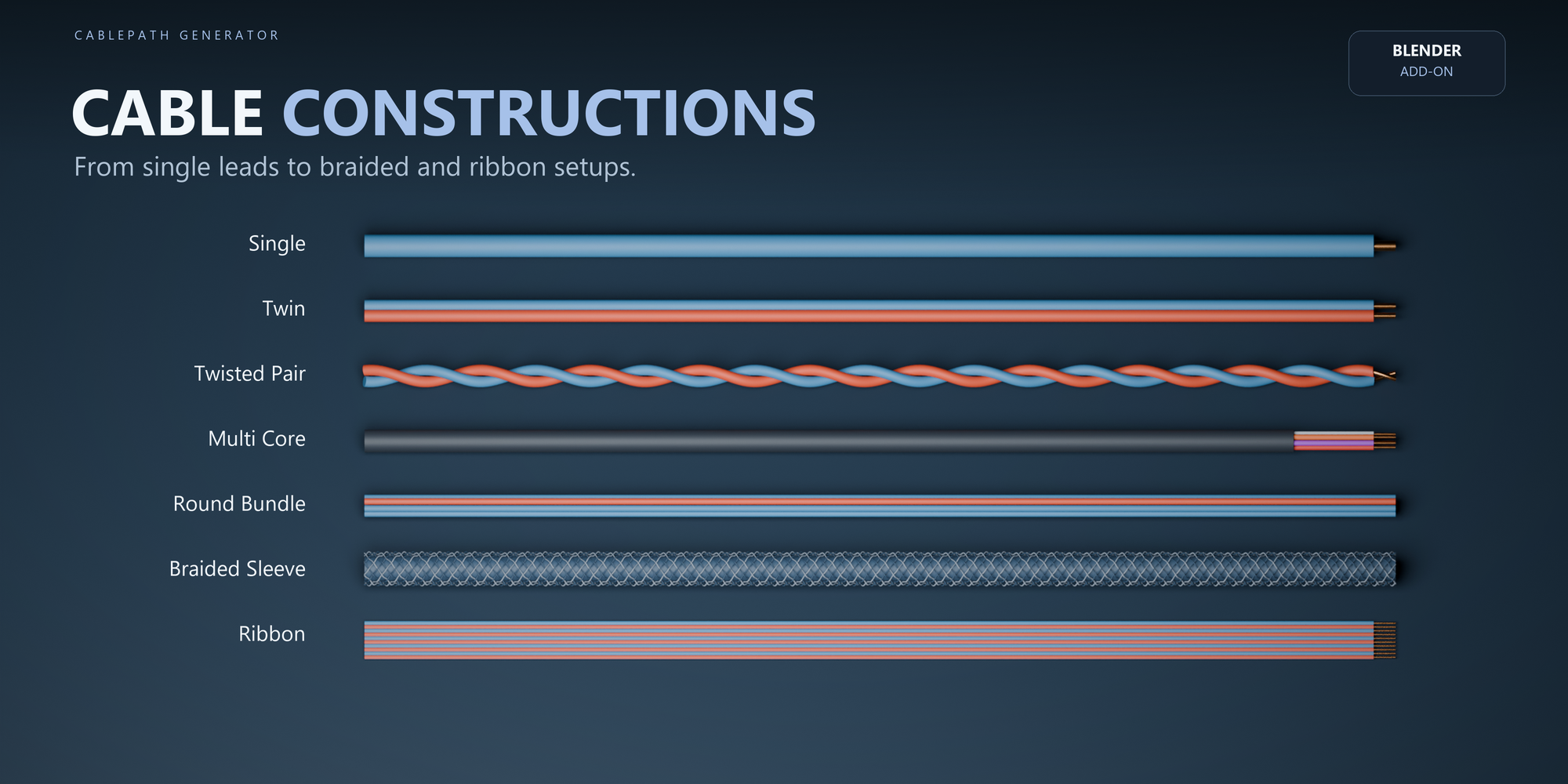

Cable constructions:

Single, Twin, Twisted Pair, Multi Core, Round Bundle, Braided Sleeve and Ribbon.

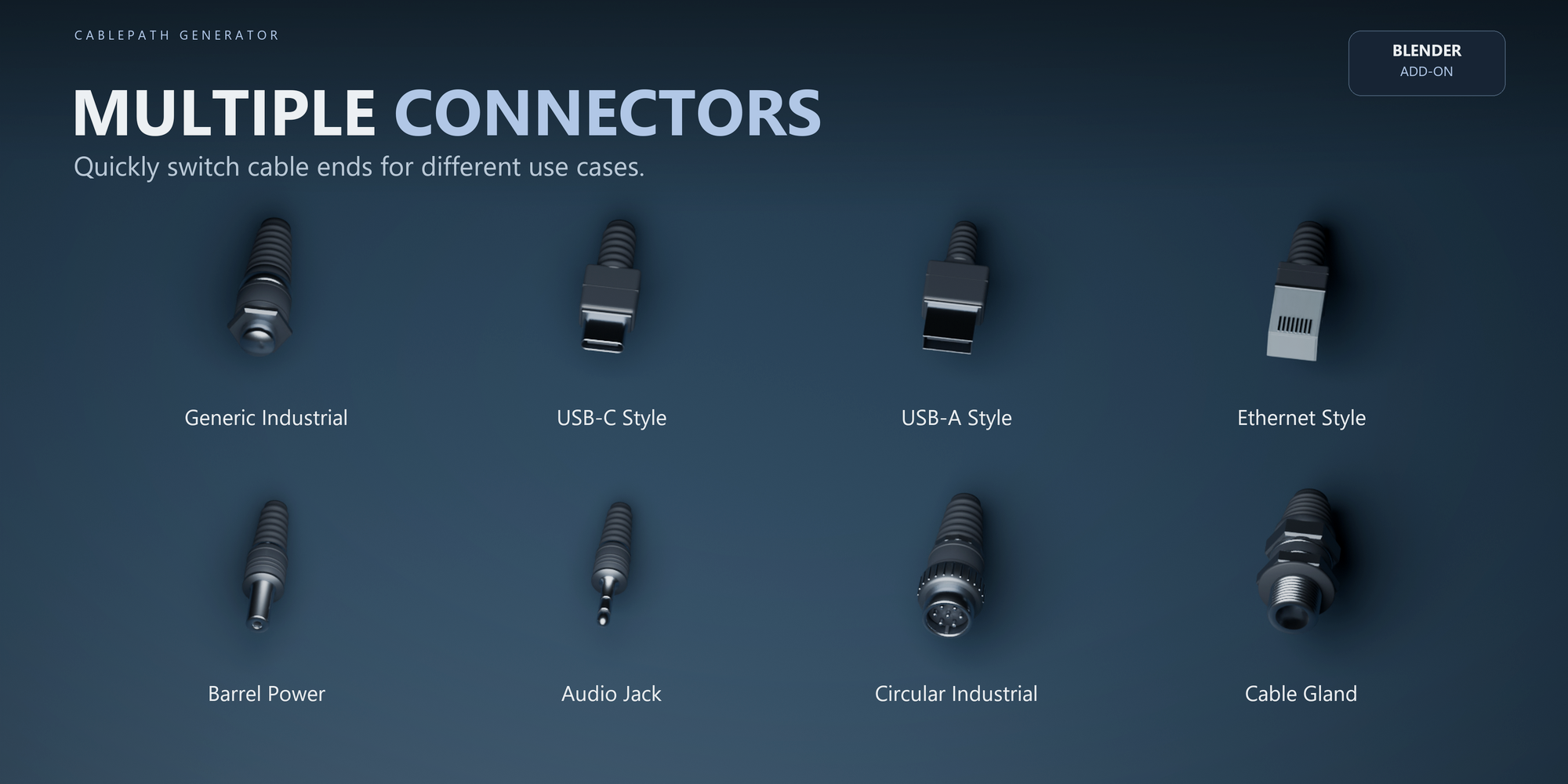

Connector styles:

Generic Industrial, USB-C Style, USB-A Style, Ethernet Style, Barrel Power, Audio Jack, Circular Industrial and Cable Gland.

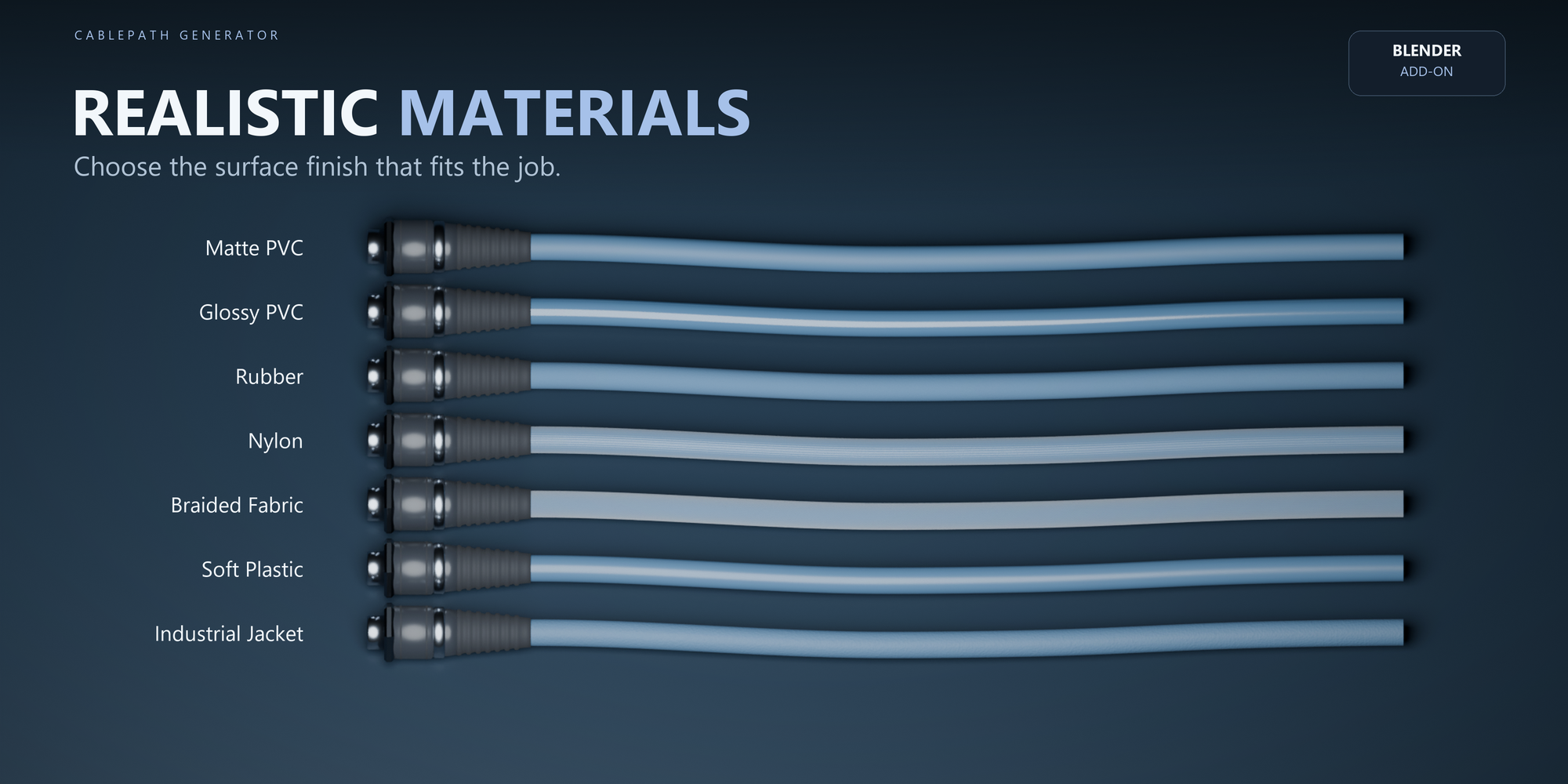

Materials:

Matte PVC, Glossy PVC, Rubber, Nylon, Braided Fabric, Soft Plastic and Industrial Jacket.

Compatibility:

Validated on Blender 5.2.2 LTS for Windows.

No external Python dependencies or texture files required.

CablePath Generator is a procedural modeling tool. It does not provide electrical simulation, collision solving or automatic obstacle routing.
